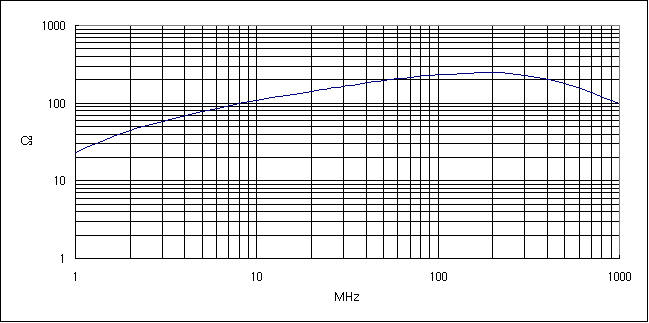

PC1111F8H1 TEST DATA
				HP4191A RF IMPEDANCE ANALYZER
NO.	FREQ(MHz)	1 Z(Ω)
1	1	23.26
2	2	45.07
3	5	77.95
4	10	107.34
5	20	141.80
6	25	153.40
7	30	163.80
8	50	196.60
9	70	215.40
10	100	232.90
11	110	236.60
12	200	246.20
13	300	227.70
14	500	177.10
15	1000	98.37
		E-TECH ELECTRONICS CO.,
